Supports filtres analytiques
Filter holder for environmental monitoring
Plus
Filter holder for environmental monitoring Moins
More>>
Less<<
Documents associés
Produits recommandés
Aperçu
Caractéristiques
Guide d'achat
Documentation
FAQ
| Question | Réponse | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| What is the pore (or screen mesh) size of the stainless screens in the Analytical filter holders? |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| I just purchased one of your stainless filter holders and after only a few uses it is starting to rust. Is the unit defective? | Rusting of stainless steel holders can usually be attributed to high iron content in the water. Iron deposits create rust "stains" that can be removed with non abrasive cleaners or sometimes fine steel wool. All stainless steel can rust over time. It should be washed with DI water and dried thoroughly immediately after each use. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Why are there two stainless steel screens required under the membrane filter of the 47mm ss filter Holder XX4404700? | The photo-etched support (catalog number XX4204709) is used to support the membrane during filtration. The underdrain (catalog number 5614) is used to lift the downstream side of the membrane away from the bottom plate so that better flow is achieved. |
Produits & Applications associés
Familles de produits
Pompes à vide Millivac™Maintenance-free, mini-diaphragm pumpsEn savoir plus >> |
Produits associés classés par : Application Facete
| Sample Preparation |
| Dialysis and Filtration |
Catégories
| Reagents, Chemicals and Labware > Lab Filtration > Filter Holders and Accessories |
Filter Holders & Accessories
Filter Holders & Accessories
Filter Holders & Accessories
Filter Holders & Accessories
Filter Holders & Accessories
)

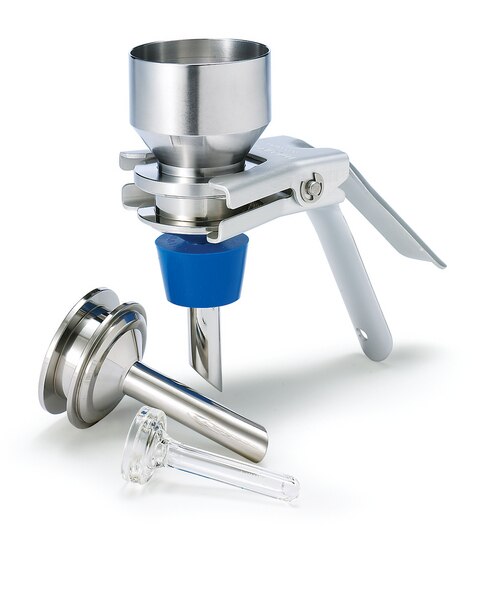

| Pièces de rechange | |
| 1 | Entonnoir en acier inoxydable, 100 ml |
| 2 | Pince d'assemblage en aluminium anodisé, 25 mm |
| 3 | Base pour support filtre 25 mm |
| 4 | Bouchon n° 8 en silicone, orifice 9,5 mm |
| 5 | Grille support en acier inoxydable |
| 6 | Joints plats, revêtus de PTFE |
| Matériaux | ||||
| Unité | ||||
| Joint | PTFE | aucun joint requis | aucun joint requis | |
| Diamètre du filtre | 25 mm | 47 mm | 47 mm | |
| Surface de filtration | 2.8 cm² | 9 cm² | 9 cm² | |
| Dimensions | ||||
| Hauteur | 12.6 cm | 15.6 cm | 19.4 cm | |
| 6.2 cm | 7.6 cm | |||
| Sortie | Bouchon, s'adapte sur une fiole à vide standard de 1 litre | |||
