Merck

M188

Maleic anhydride

99%

Synonym(s):

2,5-Furandione

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C4H2O3
CAS Number:
108-31-6
Molecular Weight:
98.06
UNSPSC Code:
12162002
NACRES:
NA.23
PubChem Substance ID:
24896701
EC Number:
203-571-6
Beilstein/REAXYS Number:
106909
MDL number:
MFCD00005518

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

InChI key

FPYJFEHAWHCUMM-UHFFFAOYSA-N

InChI

1S/C4H2O3/c5-3-1-2-4(6)7-3/h1-2H

SMILES string

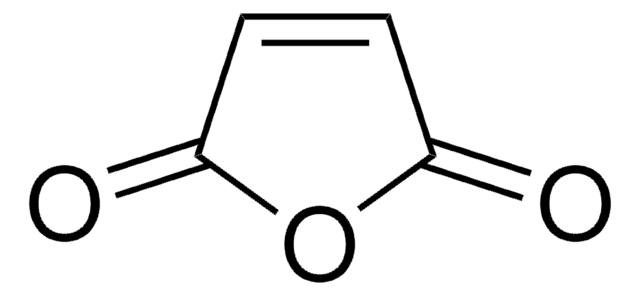

O=C1OC(=O)C=C1

vapor density

3.4 (vs air)

vapor pressure

0.16 mmHg ( 20 °C)

assay

99%

autoignition temp.

870 °F

expl. lim.

7.1 %

bp

200 °C (lit.)

mp

51-56 °C (lit.)

Quality Level

200

Looking for similar products? Visit Product Comparison Guide

Related Categories

General description

Maleic anhydride (MA) belongs to the class of monomers known as cyclic dicarboxylic anhydrides. It is commonly used in polymerization reactions to produce various types of polymers such as poly(maleic anhydride) (PMA), maleic anhydride-based resins, and maleic anhydride-butadiene copolymers (MABS), etc. These MA-based polymers find applications in various fields including, polymer blends and coatings, epoxy resins, semiconductor devices, secondary batteries, lithium-ion batteries, resin films, glass fiber, coatings, packaging, water treatment, and drug delivery systems. Additionally, MA can be grafted onto other polymers, to enhance their performance and compatibility with other materials. Grafted polymers find applications in the automotive, packaging, and construction industries. Maleic anhydride is also used as an electron-acceptor monomer in the development of various antimicrobial polymers due to their reactive double bonds and reactive anhydride groups.

The structure of maleic acid consists of four carbon molecules along with carboxylate groups on either ends, with a double bond between the central carbon atoms. The anhydride of maleic acid has five atoms in its cyclic molecule, the unsaturated bond undergoes free radical polymerization in the presence of an initiator.

Application

Maleic anhydride can be used as a monomer:
  • In the grafting process of high-density polyethylene (HDPE) by the monomer microencapsulation technique, which enables the introduction of enhanced functionality and improved properties to the polymer for functional coatings, membranes, or surface treatments, adhesives, and coatings.
  • In the functionalization of polylactic acid (PLA) and acts as a coupling agent in natural fiber biocomposites. The functionalization improves the compatibility and interfacial adhesion between PLA and natural fibers, leading to enhanced mechanical properties and expanded applications of the resulting biocomposite materials.
  • Maleic anhydride may be used in the synthesis of unsaturated polyester resins and as a reactant in synthesizing important products such as agricultural chemicals, lubricant additives, and food acidulatents.

Physical form

briquettes

signalword

Danger

Hazard Classifications

Acute Tox. 4 Oral - Eye Dam. 1 - Resp. Sens. 1 - Skin Corr. 1B - Skin Sens. 1A - STOT RE 1 Inhalation

target_organs

Respiratory system

supp_hazards

EUH071

Storage Class

6.1C - Combustible acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

wgk

WGK 1

flash_point_f

217.4 °F - closed cup

flash_point_c

103 °C - closed cup

ppe

Eyeshields, Faceshields, Gloves, type P3 (EN 143) respirator cartridges

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

Deleterious substance

pdsc

Class II Designated Chemical Substances

prtr

Substances Subject to be Indicated Names

ishl_indicated

Substances Subject to be Notified Names

ishl_notified
