MPGL04GK2

Milli-Q

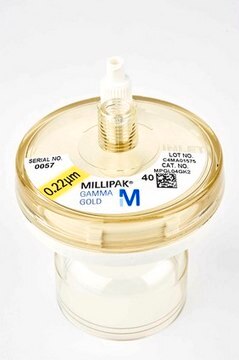

Millipak® Gold Filter

Sterile 0.22 μm membrane filter to remove particulates and bacteria at the point of dispense. For Milli-Q® Advantage A10/Academic/Biocel/Element/Synthesis/Plus/Gradient, Alpha-Q and Milli-DI® systems.

Synonym(s):

Millipak® 40 Gamma Gold Filter

Sign Into View Organizational & Contract Pricing

About This Item

UNSPSC Code:
41104212
eCl@ss:
33050190
NACRES:
JA.14

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

material

PVDF membrane

Quality Level

300

sterility

sterile

product line

EMPROVE® Filter

feature

hydrophilic

packaging

pkg of 2 units

manufacturer/tradename

Millipak®

parameter

0.35 bar max. differential pressure at 123 °C (Forward)
0.7 bar max. differential pressure at 25 °C (Reverse)
1.7 bar max. differential pressure at 80 °C (Forward)
4.1 bar max. differential pressure at 25 °C (Forward)
5.2 bar max. inlet pressure at 25 °C

inlet connection diam.

1/4 in.

outlet connection diam.

1/4 in.

impurities

<0.5  EU/mL USP bacterial endotoxins (LAL test, sample aqueous extraction)

gravimetric extractables

≤1.5 mg/device

matrix

Durapore®

pore size

0.22 μm pore size

fitting

male NPT inlet connection
 outlet stepped hose barb (with bell)

compatibility

for use with Alpha-Q
for use with Milli-DI®
for use with Milli-Q® Academic
for use with Milli-Q® Advantage A10
for use with Milli-Q® Biocel
for use with Milli-Q® Direct
for use with Milli-Q® Element
for use with Milli-Q® Gradient
for use with Milli-Q® Plus
for use with Milli-Q® Reference
for use with Milli-Q® Synthesis

shipped in

ambient

General description

Millipak® membrane products are designed for routine filtration applications in the laboratory. Millipak® filters are best-in-class, proven products, used in lab water purification systems to remove particulates and bacteria to benefit the stringent requirements of scientific applications.

Application

Removes bacteria and particulates in ultrapure water, making it suitable for techniques used in the laboratory where bacterial control is crucial (cell culture, microbiology media preparation, etc.).

Features and Benefits

  • Millipak® membrane filters are made with Durapore® PVDF membranes to provide high flow rates and throughputs, low extractable and broad chemical compatibility.
  • Gamma-irradiated for additional bacteria control.
  • The membrane is supported by a rigid plastic disc with channels that ensures high water flow and resistance to pressure variations without the risk of membrane rupture.
  • Millipak® membrane filters use the unique, clean stacked disc design, allowing minimal hold-up volume and particle shedding.
  • Connects to the outlet of the water delivery point, such as the PODs of Milli-Q® water purification systems.The protective bell protects against intrusion of airborne bacteria contamination during dispensing.
  • The protective bell protects against intrusion of airborne bacteria contamination during dispensing.
  • Care-free maintenance: the filter is easily fitted and replaced.
  • Device configuration: Gamma Gold Capsule.
  • Sterile unit.
  • Delivered hermetically sealed, with its Certificate of Quality.

Preparation Note

This product was manufactured with a Durapore® membrane which meets the criteria for a "non-fiber releasing" filter as defined in 21 CFR 210.3 (b) (6).

Analysis Note

Bacterial Retention
Samples were quantitatively retentive of a minimum Brevundimonas diminuta challenge concentration of 1 x 10⁷ CFU/cm² using ASTM® F838 methodology.
Gravimetric Extractables: using sterilized device after a 200 mL flush and 24 hours in water at controlled room temperature

Other Notes

Directions for Use

  • Organism Retention: Microorganisms
  • Mode of Action: Filtering
  • Application: General laboratory analysis
  • Intended Use: Water purification
  • Instructions for Use: This item provides water filtered through 0.22 μm sterilizing-grade membranes. Refer to system equipment user guide section "Using the System" (available on USB key in the system box).
  • Storage Statement: Store in dry location
  • Disposal Statement: Dispose of in accordance with applicable federal, state and local regulations.
These products are manufactured in a facility which adheres to FDA Good Manufacturing Practices.
