Merck

140910

Bathocuproine

greener alternative

96%

Synonym(s):

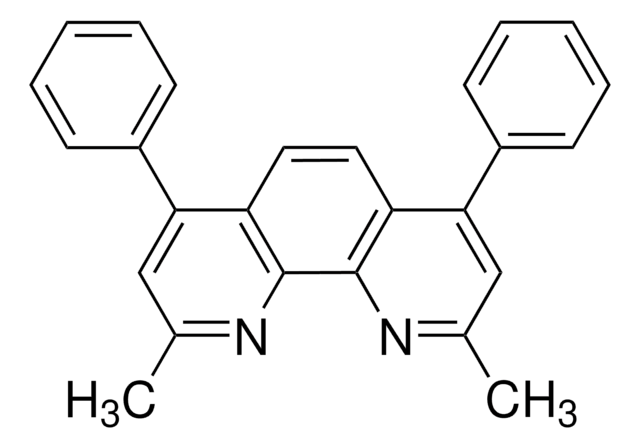

2,9-Dimethyl-4,7-diphenyl-1,10-phenanthroline, BCP

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C26H20N2
CAS Number:
4733-39-5
Molecular Weight:
360.45
UNSPSC Code:
12352103
NACRES:
NA.23
PubChem Substance ID:
24848482
EC Number:
225-240-5
Beilstein/REAXYS Number:
306714
MDL number:
MFCD00004972

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Bathocuproine, 96%

InChI key

STTGYIUESPWXOW-UHFFFAOYSA-N

InChI

1S/C26H20N2/c1-17-15-23(19-9-5-3-6-10-19)21-13-14-22-24(20-11-7-4-8-12-20)16-18(2)28-26(22)25(21)27-17/h3-16H,1-2H3

SMILES string

Cc1cc(-c2ccccc2)c3ccc4c(cc(C)nc4c3n1)-c5ccccc5

assay

96%

form

powder

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

mp

279-283 °C (lit.)

λmax

~280 nm in methanol

orbital energy

HOMO 7 eV
LUMO 3.5 eV

OLED device performance

ITO/CuPc/NPD/TCTA/mCP:FIrpic (6%)/BCP/LiF/Al

  • Color: blue
  • Max. EQE: 4.2 %

ITO/NPD/CBP:Ir(ppy)3/BCP/Alq3/Mg:Al
  • Color: green
  • Max. Luminance: 100000 Cd/m2
  • Max. EQE: 8 %
  • Turn-On Voltage: 4.3 V

ITO/NPD/TCTA/BCPO:Ir(piq)3 (7-8%)/BCP/Alq3/LiF/Al
  • Color: red
  • Max. Luminance: 24529 Cd/m2
  • Max. EQE: 17 %
  • Turn-On Voltage: 2.7 V

ITO/NPD/TCTA/BCPO:Ir(ppy)3 (7-8%)/BCP/Alq3/LiF/Al
  • Color: green
  • Max. Luminance: 207839 Cd/m2
  • Max. EQE: 21.6 %
  • Turn-On Voltage: 2.1 V

greener alternative category

, Enabling

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

Bathocuproine can be used as an electron modificationlayer or interlayer between ETL(electron transport layer) in perovskite solarcells, which can be fabricated using the spin-coating deposition method or thevacuum thermal evaporation method. The addition of bathocuproine enhances thepower conversion efficiency of organic photovoltaic cells.

General description

We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Electron transport organic materials have the chemical functionality to transport electrons and are used as electron transport layer in OLED devices. Click here for more information.

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H302,H413

Hazard Classifications

Acute Tox. 4 Oral - Aquatic Chronic 4

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Faceshields, Gloves
