Merck

684457

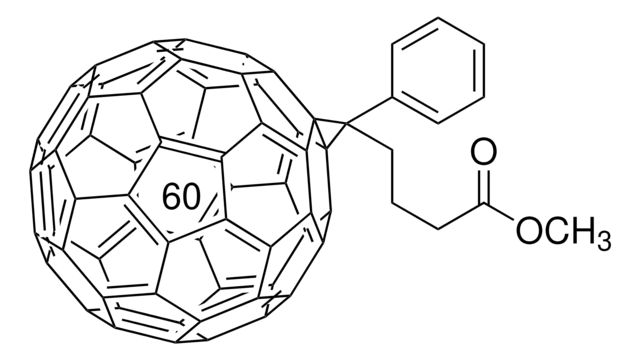

[6,6]-Phenyl C61 butyric acid methyl ester

>99.5%

Synonym(s):

1-[3-(Methoxycarbonyl)propyl]-1-phenyl-[6.6]C61, 3′H-Cyclopropa[1,9] [5,6]fullerene-C60-Ih-3′-butanoic acid 3′-phenyl methyl ester, PCBM, [60]PCBM

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C72H14O2
CAS Number:
160848-22-6
Molecular Weight:
910.88
NACRES:
NA.23
PubChem Substance ID:
24885806
UNSPSC Code:
12352103
MDL number:
MFCD07784544

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

[6,6]-Phenyl C61 butyric acid methyl ester, >99.5%

InChI

1S/C72H14O2/c1-74-11(73)8-5-9-70(10-6-3-2-4-7-10)71-66-59-52-40-32-23-14-12-13-15-18(14)27-34(32)42-43-35(27)33-24(15)26-22-17(13)20-19-16(12)21-25(23)38(40)46-44-30(21)28(19)36-37-29(20)31(22)45-47-39(26)41(33)53-55(43)64(63(66)54(42)52)67-60(53)58(47)62-51(45)49(37)56-48(36)50(44)61(57(46)59)68(71)65(56)69(62)72(67,70)71/h2-4,6-7H,5,8-9H2,1H3

SMILES string

COC(=O)CCCC2(c1ccccc1)[C]3=4c5c6c7c8c9c%10c(c%11c%12c3c%13c5c%14c%15c6c%16c7c%17c9c%18c%19c%10c%20c%11c%21c%12c%22c%13c%23c%14c%24c%15c%25c%16c%26c%17c%18c%27c%28c%19c%20c%29c%21c%30c%22c%23c%31c%24c%32c%25c%26c%27c%33c%28c%29c%30c%31c%32%33)[C]2=48

InChI key

MCEWYIDBDVPMES-UHFFFAOYSA-N

description

functionalized fullerene

assay

>99.5%

form

solid

solubility

chlorobenzene: soluble
organic solvents: soluble
toluene: soluble

orbital energy

HOMO 6.1 eV
LUMO 3.7 eV

semiconductor properties

N-type (mobility=0.21 cm2/V·s)

Quality Level

100

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

Soluble n-channel organic semiconductor. For use as an n-type layer in plastic electronics, especially bulk heterojunction OFETs and photovoltaic cells (PVs).
[60]PCBM is an n-type semi-conductor widely used as an electron transport material with low cost and high surface area in different energy based applications like organic photovoltaics (OPVs), perovskite solar cells (PSCs), field effect transistors (FETs) and photodetectors.

General description

[6,6]-Phenyl C61 butyric acid methyl ester ([60]PCBM) is a methanofullerene that has a better solubility in organic solvents than fullerenes(C60). It has high electron mobility which enables its function as an electron acceptor in electrochemical applications.
