804355

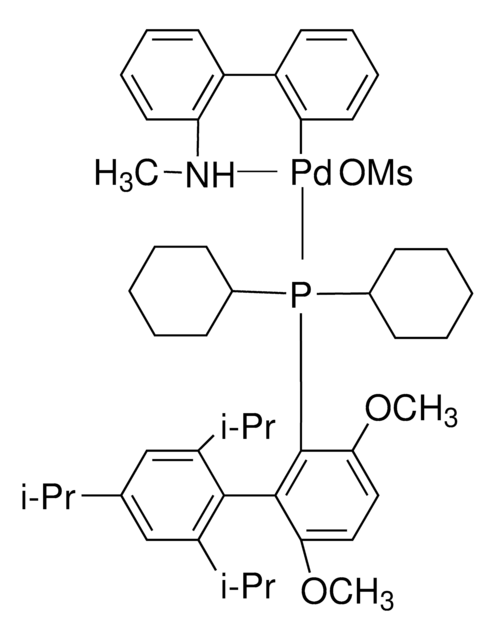

BrettPhos Pd G4

95%, powder

Synonym(s):

(SP-4-3)-[Dicyclohexyl[3,6-dimethoxy-2′,4′,6′-tris(1-methylethyl)[1,1′-biphenyl]-2-yl]phosphine-κP](methanesulfonato-κO)[2′-(methylamino-κN)[1,1′-biphenyl]-2-yl-κC]

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

Empirical Formula (Hill Notation):
C49H68NO5PPdS
CAS Number:
1599466-83-7
Molecular Weight:
920.53
MDL number:
MFCD29917502
UNSPSC Code:
12161600
PubChem Substance ID:
329768863
NACRES:
NA.22
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

BrettPhos Pd G4,

Quality Segment

100

product line

Buchwald precatalyst Generation 4

assay

95%

form

powder

feature

generation 4

reaction suitability

reaction type: Buchwald-Hartwig Cross Coupling Reaction, reaction type: Heck Reaction, reaction type: Hiyama Coupling, reaction type: Negishi Coupling, reaction type: Sonogashira Coupling, reaction type: Stille Coupling, reaction type: Suzuki-Miyaura Coupling, reagent type: catalyst
reaction type: Cross Couplings

functional group

phosphine

SMILES string

CC(C)C1=CC(C(C)C)=CC(C(C)C)=C1C2=C(P(C3CCCCC3)C4CCCCC4)C(OC)=CC=C2OC.CNC5=C(C6=C([Pd]OS(C)(=O)=O)C=CC=C6)C=CC=C5

InChI

1S/C35H53O2P.C13H12N.CH4O3S.Pd/c1-23(2)26-21-29(24(3)4)33(30(22-26)25(5)6)34-31(36-7)19-20-32(37-8)35(34)38(27-15-11-9-12-16-27)28-17-13-10-14-18-28;1-14-13-10-6-5-9-12(13)11-7-3-2-4-8-11;1-5(2,3)4;/h19-25,27-28H,9-18H2,1-8H3;2-7,9-10,14H,1H3;1H3,(H,2,3,4);/q;;;+1/p-1

InChI key

YVIWYUQZBYFFLZ-UHFFFAOYSA-M

General description

BrettPhos Pd G4 is an N-substituted 2-aminobiphenylpalladium methanesulfonate precatalyst. It is a fourth generation (G4) Buchwald precatalyst that is similar to the third generation (G3) precatalysts except that the amino group on the biphenyl backbone is methylated. This modification helps to prevent the limitations of using the third generation precatalysts. It is air, moisture and thermally-stable and shows good solubility in common organic solvents. BrettPhos Pd G4 is highly useful in cross-coupling reactions. Some of its excellent features include lower catalyst loadings, shorter reaction time, efficient formation of the active catalytic species and accurate control of ligand: palladium ratio.

Application

  • High Throughput Experimentation in Pharmaceutical Process Chemistry: This study evaluates the efficacy of BrettPhos Pd G4 in a ring closure reaction, emphasizing its selectivity and yield, which supports its potential utility in pharmaceutical synthesis (Solazzo, 2022).
  • Synthesis and characterization of fluorescent amino acid dimethylaminoacridonylalanine: Research detailing the use of various Buchwald precatalysts including BrettPhos Pd G4. The study explores the synthesis of a fluorescent amino acid, highlighting the specific conditions where BrettPhos Pd G4 provided notable benefits over other catalysts (Jones et al., 2021).

Storage Class

11 - Combustible Solids

flash_point_f

Not applicable

flash_point_c

Not applicable
