900450

Graphene dispersion

greener alternative

1 mg/mLin DMF, sheet resistance 4.8 kΩ/sq, avg. no. of layers, 1 ‑ 3

Synonym(s):

Conductive ink, Electrochemically exfoliated graphene ink, Graphene ink

Sign In to View Organizational & Contract Pricing.

Select a Size

Change View

About This Item

UNSPSC Code:
12141908
NACRES:
NA.23
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Graphene dispersion, 1 mg/mL in DMF, sheet resistance 4.8 kΩ/sq, avg. no. of layers, 1 ‑ 3

description

Electrodes

Quality Segment

100

form

dispersion

feature

avg. no. of layers 1 ‑ 3

greener alternative product characteristics

Design for Energy Efficiency
Learn more about the Principles of Green Chemistry.

sustainability

Greener Alternative Product

concentration

1 mg/mL (electrochemically exfoliated graphene), 1 mg/mL in DMF

greener alternative category

, Enabling

General description

  • Graphene preparation method: electrochemical exfoliation.
  • Graphene thickness by AFM: 80%, 1-3 layers.
  • Sheet size by AFM: Few micrometers
  • Oxygen content: 7.5% (by XPS) (C/O-ratio: 12.3).
  • Raman I_D/I_G ratio: 0.4.
  • Sheet resistance: 4.8 kΩ/sq.
  • Typical properties of films produced thereof (after dry transfer from PTFE-filter):

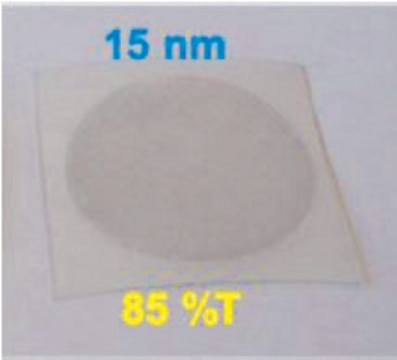

15 nm film: 85% transmittance, sheet resistance of 16 kΩ/sq (as made), 4.1 kΩ/sq (after 30 min, 200 °C), <1 kΩ/sq (conc. HNO3-treatment).
25 nm film: 73% transmittance, sheet resistance of 8 kΩ/sq (as made), 2.4 kΩ/sq (after 30 min, 200 °C), <1 kΩ/sq (conc. HNO3-treatment).
We are committed to bringing you Greener Alternative Products, which adhere to one or more of The 12 Principles of Greener Chemistry. This product belongs to Enabling category of greener alternatives thus aligns with "Design for energy efficency". Graphene inks are highly conductive, low cost and super flexible. Click here for more information.

Still not finding the right product?

Explore all of our products under Graphene dispersion

signalword

Danger

Hazard Classifications

Acute Tox. 4 Dermal - Acute Tox. 4 Inhalation - Eye Irrit. 2 - Flam. Liq. 3 - Repr. 1B

Storage Class

3 - Flammable liquids

wgk

WGK 2

flash_point_f

139.0 °F

flash_point_c

59.44 °C

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

Class I Designated Chemical Substances

prtr

Group 4: Flammable liquids + Type 2 petroleums + Hazardous rank III + Water insoluble liquid

fsl

Substances Subject to be Indicated Names

ishl_indicated

Substances Subject to be Notified Names

ishl_notified

900450-BULK: + 900450-20ML: + 900450-5ML:4548174009932 + 900450-VAR:
