901046
Carbon nanotube forestvertically aligned on Si substrate
Drawable, DxL 10-40 nm× 1.0 mm ± 0.5 mm
別名:
CNT array, MWCNT
で組織・契約価格をご覧ください。
サイズを選択してください
表示を変更する
この商品について
製品名
Carbon nanotube array, multi-walled, drawable, vertically aligned on Si substrate
description
Form: 10 mmx20 mm Si substrate
Quality Segment
assay
98% (carbon as CNT)
diam. × L
10-40 nm × 1.0 mm ± 0.5 mm
SMILES string
[C]
InChI
1S/C
InChI key
OKTJSMMVPCPJKN-UHFFFAOYSA-N
General description

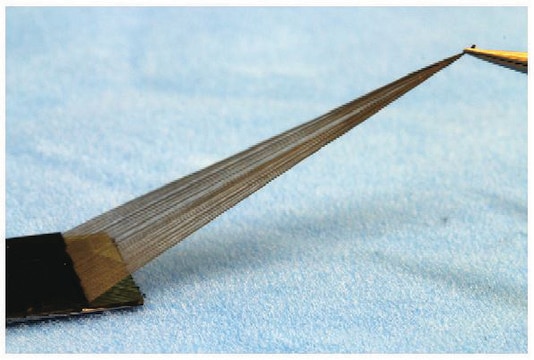

Multi-walled carbon nanotubes (MWCNT) are vertically aligned on a Si substrate with a high density. Since all the MWCNTs are bundled by van der Walls force, CNT web is drawn easily by pinching an edge of the array out from the substrate. The web is very light weight and robust, and sometimes semi-transparent.
Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of our CNT is ~3, showing high crystal quality.
Crystal quality of CNT is examined by Raman scattering measurement. Intensity ratio of G-peak (1580 cm-1) and D-peak (1350 cm-1) represents quality of graphitization of carbon materials. G/D of our CNT is ~3, showing high crystal quality.
Preparation Note
Chemical Vapor Deposition (CVD) method.
Still not finding the right product?
Explore all of our products under Carbon nanotube array, multi-walled, drawable
保管分類
11 - Combustible Solids
wgk
WGK 3
flash_point_f
Not applicable
flash_point_c
Not applicable
