Merck

172405

Tetraethylene glycol dimethyl ether

≥99%, cross-linking reagent click chemistry

Synonym(s):

2,5,8,11,14-Pentaoxapentadecane, Bis[2-(2-methoxyethoxy)ethyl] ether, Dimethoxytetraethylene glycol, Dimethyltetraglycol, Tetraglyme

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

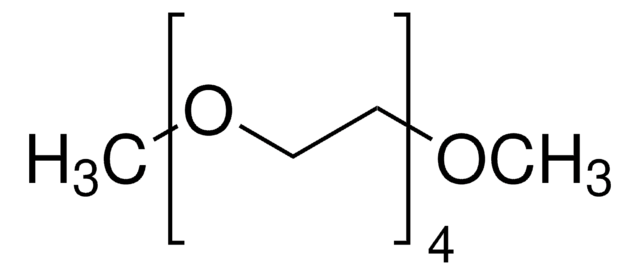

Linear Formula:
CH3O(CH2CH2O)4CH3
CAS Number:
143-24-8
Molecular Weight:
222.28
NACRES:
NA.23
PubChem Substance ID:
24850399
UNSPSC Code:
12162002
EC Number:
205-594-7
MDL number:
MFCD00008505
Beilstein/REAXYS Number:
1760005

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Tetraethylene glycol dimethyl ether, ≥99%

InChI key

ZUHZGEOKBKGPSW-UHFFFAOYSA-N

InChI

1S/C10H22O5/c1-11-3-5-13-7-9-15-10-8-14-6-4-12-2/h3-10H2,1-2H3

SMILES string

COCCOCCOCCOCCOC

vapor density

7.7 (vs air)

vapor pressure

<0.01 mmHg ( 20 °C)

assay

≥99%, ≥99.0% (GC)

form

liquid

autoignition temp.

510 °F

reaction suitability

reagent type: cross-linking reagent
reaction type: click chemistry

impurities

≤1.0% Water (Karl Fischer), ≤50 ppm Trace peroxide (as H2O2)

Quality Level

200

bp

275-276 °C (lit.)

mp

−30 °C (lit.)

density

1.009 g/mL at 25 °C (lit.)

polymer architecture

shape: linear
functionality: homobifunctional

Looking for similar products? Visit Product Comparison Guide

Related Categories

General description

Tetraethylene glycol dimethyl ether or tetraglyme is an organic aprotic colourless solvent with film forming ability.

Application

Tetraglyme coating was applied on glucose sensors, such as Nafion™ by RF to render it “non fouling” and enhancing linking of bio mimetic molecules to the surface. Tetraglyme helps in selective adsorption of proteins while promoting cell adhesion. Other general uses include as an electrolyte in lithium ion battery.

Legal Information

Nafion is a trademark of The Chemours Company FC, LLC

pictograms

Health hazard
GHS08

signalword

Danger

hcodes

H360FD

Hazard Classifications

Repr. 1B

supp_hazards

EUH019

Storage Class

6.1C - Combustible acute toxic Cat.3 / toxic compounds or compounds which causing chronic effects

wgk

WGK 1

flash_point_f

276.8 °F - closed cup

flash_point_c

136 °C - closed cup

ppe

Eyeshields, Faceshields, Gloves, type ABEK (EN14387) respirator filter

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

143-24-8

CAS No.

143-24-8

CAS No.

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
BCCG6172
BCCF2908
BCCC6542
BCCC0743
BCCC0152

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

Yongguang Zhang et al.
Nanoscale research letters, 9(1), 137-137 (2014-03-25)
A novel sulfur/graphene nanosheet (S/GNS) composite was prepared via a simple ball milling of sulfur with commercial multi-layer graphene nanosheet, followed by a heat treatment. High-resolution transmission and scanning electronic microscopy observations showed the formation of irregularly interlaced nanosheet-like structure
Luisa Mayorga Szott et al.
Journal of biomedical materials research. Part A, 96(1), 150-161 (2010-11-26)
Nonspecific protein adsorption, particularly fibrinogen (Fg), is thought to be an initiating step in the foreign body response (FBR) to biomaterials by promoting phagocyte attachment. In previous studies, we therefore prepared radiofrequency glow discharge (ethylene oxide)-like tetraglyme (CH(3)O(CH(2)CH(2)O)(4)CH(3)) coatings adsorbing
Gautam Mishra et al.
Langmuir : the ACS journal of surfaces and colloids, 26(5), 3720-3730 (2009-12-03)
Physical and photolithographic techniques are commonly used to create chemical patterns for a range of technologies including cell culture studies, bioarrays and other biomedical applications. In this paper, we describe the fabrication of chemical micropatterns from commonly used plasma polymers.
Min Zhang et al.
Journal of biomedical materials research. Part A, 89(3), 791-803 (2008-05-23)
Previous studies have showed that radio-frequency plasma deposited tetraglyme coatings greatly reduced fibrinogen adsorption (Gamma(Fg)) from highly diluted plasmas (0.1 and 1%) and subsequent platelet adhesion under static conditions. In this study, the protein resistant properties of tetraglyme were re-examined
Emily E Fenn et al.
Journal of the American Chemical Society, 131(15), 5530-5539 (2009-03-28)
Poly(ethylene) oxide (PEO) is a technologically important polymer with a wide range of applications including ion-exchange membranes, protein crystallization, and medical devices. PEO's versatility arises from its special interactions with water. Water molecules may form hydrogen-bond bridges between the ether
