344206

Disperse Red 1

Dye content 95 %

Synonym(s):

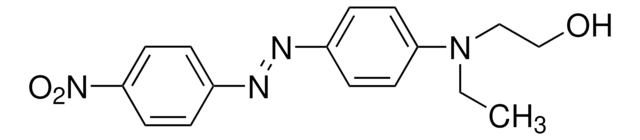

N-Ethyl-N-(2-hydroxyethyl)-4-(4-nitrophenylazo)aniline

Sign In to View Organizational & Contract Pricing.

Select a Size

About This Item

Empirical Formula (Hill Notation):
C16H18N4O3
CAS Number:
2872-52-8
Molecular Weight:
314.34
EC Number:
220-704-3
UNSPSC Code:
12352103
NACRES:
NA.23
PubChem Substance ID:
24861232
MDL number:
MFCD00007312
Colour Index Number:
11110
Beilstein/REAXYS Number:
5353614

Key Documents

View All Documentation
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist
Technical Service
Need help? Our team of experienced scientists is here for you.
Let Us Assist

Product Name

Disperse Red 1, Dye content 95 %

InChI key

FOQABOMYTOFLPZ-ISLYRVAYSA-N

InChI

1S/C16H18N4O3/c1-2-19(11-12-21)15-7-3-13(4-8-15)17-18-14-5-9-16(10-6-14)20(22)23/h3-10,21H,2,11-12H2,1H3/b18-17+

SMILES string

CCN(CCO)c1ccc(cc1)\N=N\c2ccc(cc2)[N+]([O-])=O

form

powder

composition

Dye content, 95%

mp

160-162 °C (lit.)

λmax

502 nm

Quality Level

100

Looking for similar products? Visit Product Comparison Guide

Related Categories

Application

DR1 dye can be incorporated into hydroxypropyl cellulose (HPC) matrix which can be used as a coating that finds potential application in light storage and photonics. It can also be used to evaluate the third order non-linear susceptibility (X(3)) for 1,3-indandione based glasses for use in optical frequency conversion. Polytetrafluoroethylene (PTFE) membranes modified using DR1 maintain the mass transport and diffusion properties under direct light irradiation and can be used for water desalination applications.

Features and Benefits

This benchmark dipolar chromophore was incorporated into aromatic polymers to obtain model electrooptic polymer films.

General description

Disperse Red 1 (DR1) is a non-linear optical (NLO) material which is a chromophore used as an azobenzene dye. It can form a dipole network that can enhance the electro-optic effect of the non-linear components and can also improve the photorefractive effect.

pictograms

Exclamation mark
GHS07

signalword

Warning

hcodes

H317

pcodes

P280

Hazard Classifications

Skin Sens. 1

Storage Class

11 - Combustible Solids

wgk

WGK 3

flash_point_f

Not applicable

flash_point_c

Not applicable

ppe

dust mask type N95 (US), Eyeshields, Faceshields, Gloves

Regulatory Listings

Regulatory Listings are mainly provided for chemical products. Only limited information can be provided here for non-chemical products. No entry means none of the components are listed. It is the user’s obligation to ensure the safe and legal use of the product.

2872-52-8

CAS No.

Choose from one of the most recent versions:

Certificates of Analysis (COA)

Lot/Batch Number
MKBT9389V
03418LW
17926PR
1421KX
13624BC

Don't see the Right Version?

If you require a particular version, you can look up a specific certificate by the Lot or Batch number.

Search for a COA

Already Own This Product?

Find documentation for the products that you have recently purchased in the Document Library.

Visit the Document Library

A calix (4) resorcinarene-based hyper-structured molecule bearing disperse red 1 as the chromophore with enhanced photorefractive performance under non-electric field.
Zong W, et al.
Dyes and Pigments, 160(10), 579-586 (2019)
Water desalination using visible light by disperse red 1 modified PTFE membrane.
Fujiwara M.
Desalination, 404(1), 79-86 (2017)
Reversible light-induced solubility of disperse red 1 dye in a hydroxypropyl cellulose matrix.
Pawlicka A, et al.
Cellulose, 25(3), 2083-2090 (2018)
Arylmethylene-1, 3-indandione based molecular glasses: Third order optical non-linearity.
Seniutinas G, et al.
Dyes and Pigments, 95(1), 33-40 (2012)
Polymeric electrooptic composite based on Disperse Red and its derivatives for use in photonics
Burunkova YE, et al.
Journal of Optical Technology, 77(10), 643-648 (2010)
